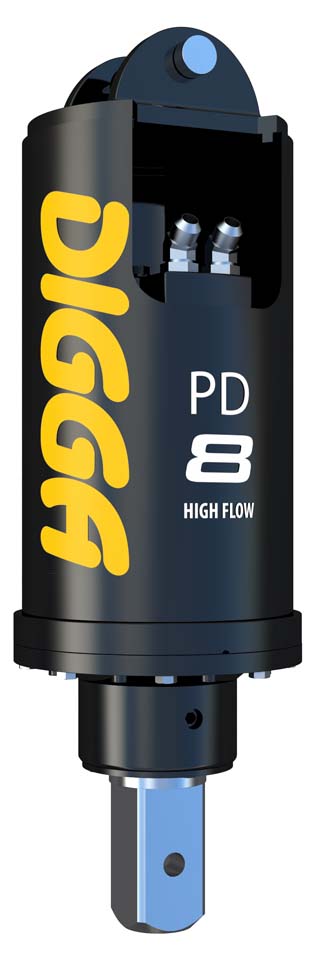

Recommended Flow: 80-200 lpm, Max Torque (Nm) @ 240 bar: 7136, Motor: 6K Bell EATON, Pressure Valve Fitted: Included, Energy Control Valve: Optional, Case Drain Required: Recommended for Backhoe loaders. Not required for Excavators, Max Pressure (Bar): Do not exceed 240 Bar @ 130 lpm, Max Flow (lpm): Do not exceed 230 lpm @ 130 Bar, Max Power (Kw): Do not exceed 50 Kw (67HP), Overall Length (mm): 950, Diameter (mm): 290, Weight (No linkage and hitch): 149, Output Shaft: 75mm Square, Swing Control (SCS): Optional, Diggalign (Auger Alignment): Optional, Recommended Auger: 6 Series, Max Auger Dia Clay/Shale*: 1000mm, Max Auger Dia Earth*: 1200mm. *Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.

PD8HF Drives used for drilling have a 5 year gearbox warranty, 3 year motor warranty and 1 year manufacturer warranty from Digga which covers defects in materials and workmanship Drives used for Anchoring fitted with an ECV (Energy Controle Valve) carry a 3 year gearbox warranty, 2 year motor warranty and 1 year manufacturer warranty. Drives used for Anchoring up to 16,000Nm-without ECV carry 2 year gearbox warranty, 1 year motor warranty and 1 year manufacturer warranty. Warranty Guidlines Warranties are subject to approval from Grease Works & Digga Warranty repairs are not to be carried out without pre-approval from Grease Works & Digga Maintenance must be carried out as per the operator's manual to maintain warranty Do not disassemble a Digga product before getting approval and instructions from Digga Ensure attachments are utilised only for their intended use. If you have a problem with any of your product and you believe they are covered by warranty please contact Grease Works
