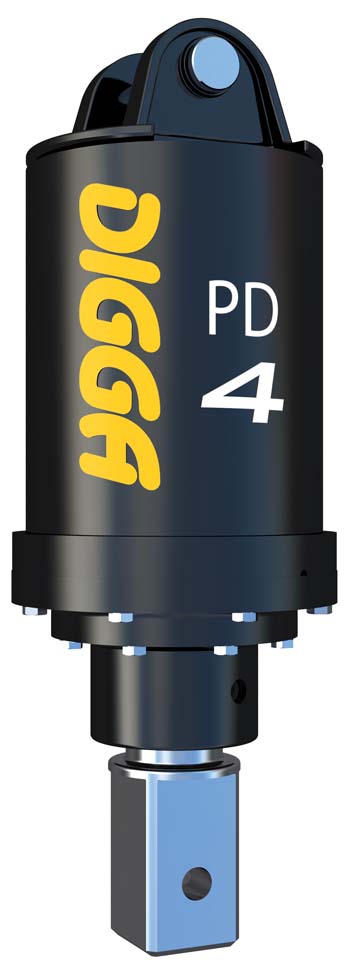

Recommended Flow: 55-85 lpm, Max Torque (Nm) @ 240 bar: 4448, Motor: 2K Bell EATON, Pressure Valve Fitted: Optional, Energy Control Valve: N/A, Case Drain Required: No, Max Pressure (Bar): Do not exceed 240 Bar @ 60 lpm, Max Flow (lpm): Do not exceed 115 lpm @ 130 Bar, Max Power (Kw): Do not exceed 25 Kw (34HP), Overall Length (mm): 579, Diameter (mm): 240, Weight (No linkage and hitch): 58, Output Shaft: 75mm Square, Swing Control (SCS): Optional, Diggalign (Auger Alignment): Optional, Recomended Auger: 4 & 6 Series, Max Auger Dia Clay/Shale*: 750mm, Max Auger Dia Earth*: 900mm. *Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.

PD4 Drives used for drilling have a 5 year gearbox warranty, 3 year motor warranty and 1 year manufacturer warranty from Digga which covers defects in materials and workmanship Drives used for Anchoring fitted with an ECV (Energy Controle Valve) carry a 3 year gearbox warranty, 2 year motor warranty and 1 year manufacturer warranty. Drives used for Anchoring up to 16,000Nm-without ECV carry 2 year gearbox warranty, 1 year motor warranty and 1 year manufacturer warranty. Warranty Guidlines Warranties are subject to approval from Grease Works & Digga Warranty repairs are not to be carried out without pre-approval from Grease Works & Digga Maintenance must be carried out as per the operator's manual to maintain warranty Do not disassemble a Digga product before getting approval and instructions from Digga Ensure attachments are utilised only for their intended use. If you have a problem with any of your product and you believe they are covered by warranty please contact Grease Works
