Recommended Flow: 30-50 lpm, Max Torque (Nm) @ 240 bar: 2307, Motor: 2K Bell EATON, Pressure Valve Fitted: Optional, Energy Control Valve: N/A, Case Drain Required: No, Max Pressure (Bar): Do not exceed 240 Bar @ 60 lpm, Max Flow (lpm): Do not exceed 115 lpm @ 130 Bar, Max Power (Kw): Do not exceed 25 Kw (34HP), Overall Length (mm): 557, Diameter (mm): 187, Weight (No linkage and hitch): 45, Output Shaft: 65mm Round, Swing Control (SCS): NA, Diggalign (Auger Alignment): NA, Recommended Auger: 4 Series, Max Auger Dia Clay/Shale*: 450mm, Max Auger Dia Earth*: 600mm. *Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
Warranty
PX2 Drives used for drilling have a 5 year gearbox warranty, 3 year motor warranty and 1 year manufacturer warranty from Digga which covers defects in materials and workmanship Drives used for Anchoring fitted with an ECV (Energy Controle Valve) carry a 3 year gearbox warranty, 2 year motor warranty and 1 year manufacturer warranty. Drives used for Anchoring up to 16,000Nm-without ECV carry 2 year gearbox warranty, 1 year motor warranty and 1 year manufacturer warranty. Warranty Guidlines Warranties are subject to approval from Grease Works & Digga Warranty repairs are not to be carried out without pre-approval from Grease Works & Digga Maintenance must be carried out as per the operator's manual to maintain warranty Do not disassemble a Digga product before getting approval and instructions from Digga Ensure attachments are utilised only for their intended use. If you have a problem with any of your product and you believe they are covered by warranty please contact Grease Works
Shipping

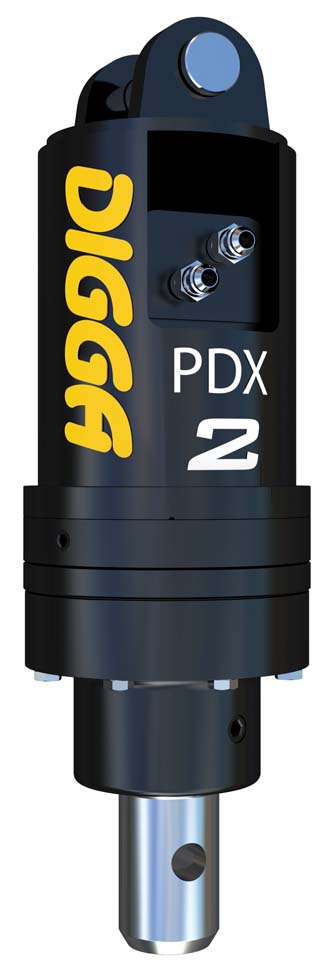

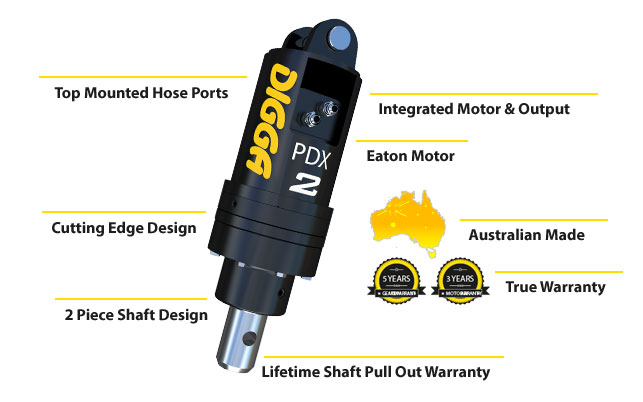

The PDX2 auger drive units are ideally suited for micro excavators, small skid steer loaders and machines with a flow between 15 to 55 lpm. Ideally used for drilling holes for fencing, tree planting, house foundations, and more. Innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance. Digga planetary auger drives are fitted with Digga / Eaton bell motors specially designed for drilling and augering in most ground conditions. This unit has 65mm round shaft and comes with 2.2m hoses. Check the specifications table to see if this drive unit is suitable for your machine.
