Recommended Flow: 60-150 lpm, Max Torque (Nm) @ 240 bar: 5634, Motor: 6K Bell EATON, Pressure Valve Fitted: Included, Energy Control Valve: Optional, Case Drain Required: Recommended for Backhoe loaders. Not required for Excavators, Max Pressure (Bar): Do not exceed 240 Bar @ 130 lpm, Max Flow (lpm): Do not exceed 210 lpm @ 145 Bar, Max Power (Kw): Do not exceed 50 Kw (67HP), Overall Length (mm): 950, Diameter (mm): 290, Weight (No linkage and hitch): 149, Output Shaft: 75mm Square, Swing Control (SCS): Optional, Diggalign (Auger Alignment): Optional, Recommended Auger: 6 Series, Max Auger Dia Clay/Shale*: 900mm, Max Auger Dia Earth*: 1200mm. *Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
Warranty
PD6HF Drives used for drilling have a 5 year gearbox warranty, 3 year motor warranty and 1 year manufacturer warranty from Digga which covers defects in materials and workmanship
Drives used for Anchoring fitted with an ECV (Energy Controle Valve) carry a 3 year gearbox warranty, 2 year motor warranty and 1 year manufacturer warranty.
Drives used for Anchoring up to 16,000Nm-without ECV carry 2 year gearbox warranty, 1 year motor warranty and 1 year manufacturer warranty.
Warranty Guidlines
Warranties are subject to approval from Grease Works & Digga
Warranty repairs are not to be carried out without pre-approval from Grease Works & Digga
Maintenance must be carried out as per the operator's manual to maintain warranty
Do not disassemble a Digga product before getting approval and instructions from Digga
Ensure attachments are utilised only for their intended use.
If you have a problem with any of your product and you believe they are covered by warranty please contact Grease Works
Shipping

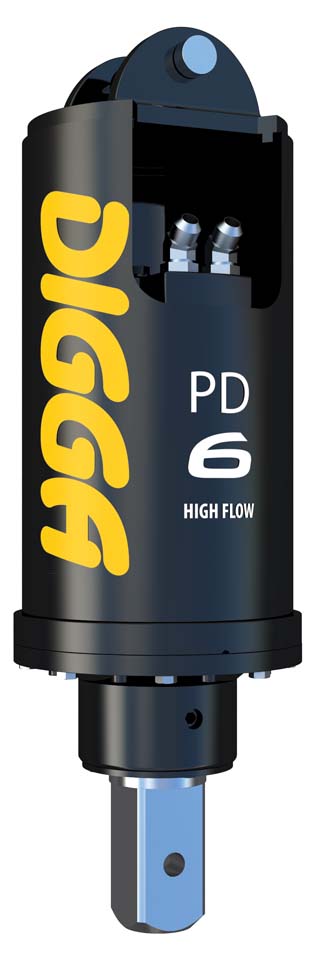

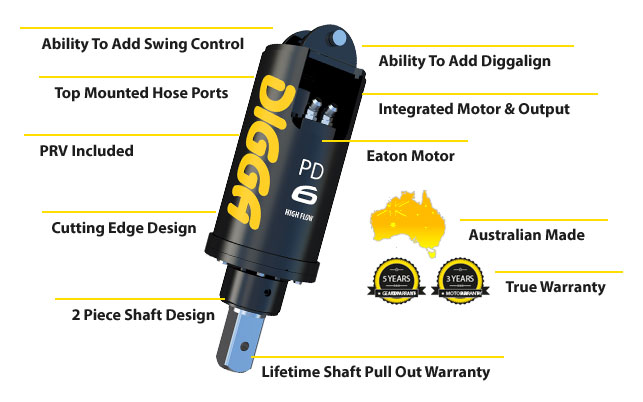

The PD6HF auger drive units are ideally suited for high flow machines with a flow between 50 to 150 lpm. They are fitted with Digga / Eaton bell motors with intergrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance. This unit has a 75mm square hub and does not include hoses. Check the specifications table to see if this drive unit is suitable for your machine.
